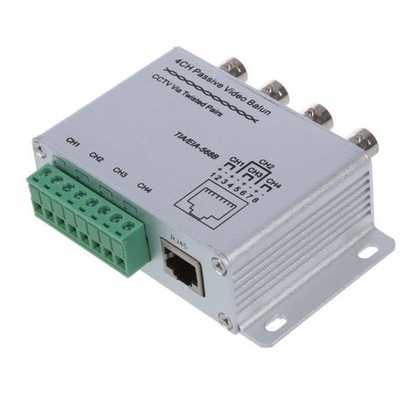

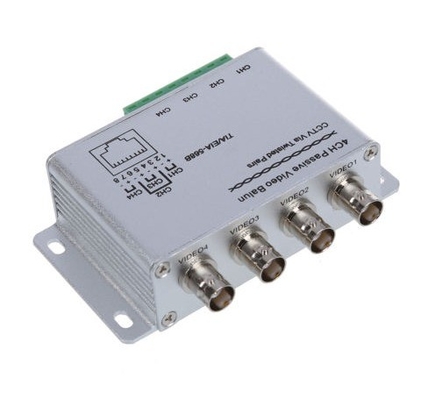

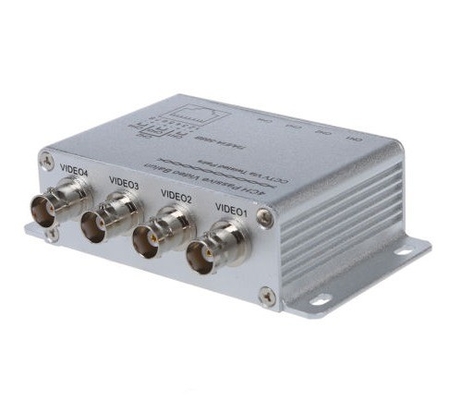

Video Transmission 4CH CAT5 HD Passive UTP Video Balun BNC Female Transceiver RJ45 for CCTV System

Large Image : Video Transmission 4CH CAT5 HD Passive UTP Video Balun BNC Female Transceiver RJ45 for CCTV System

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	C-Power
Model Number:	CP-V104

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$5.60/pieces 10-499 pieces
Packaging Details:	Standard
Supply Ability:	888888 Piece/Pieces per Month

Contact Now

Video Transmission 4CH CAT5 HD Passive UTP Video Balun BNC Female Transceiver RJ45 for CCTV System

Description

Type:	Video Transmission	Product Name:	CCTV Camera Video Balun
Application:	CCTV System	Material:	Copper
Color:	Grey	Compatible Format:	HD CVI AHD TVI
Brand:	C-Power	Port:	Shenzhen

Product Description

Introduction:

HD Video balun is to convert the video signal into the balanced signal applicable to be transmitted on common Cat-5 unshielded twisted pair wire with perfect transmission effect, which can be applied in the occasions such as video monitoring and video meeting and can transmit four channels of video image simultaneously on an 8-core Cat-5 twisted pair wire.
It can simplify the wiring project and save wire use quantity.

Features:

Compatible with all HD-CVI,HD-TVI,HD-AHD
Up to 450m for 720P CVI Cameras
Up to 250m for 1080P CVI Cameras
Up to 250m for 720P/1080P TVI Cameras
Up to 320m for 720P AHD Cameras
Up to 250m for 1080P AHD Cameras
NTSC,PAL,and SECAM video formats
No power required
60dB cross talk and noise immunity
Built-in transient suppression protection

Technical Specifications:

Frequency response: DC to 60Mhz
Attenuation: 0.5dB type
CMRR: 60dB
Surge protection: 4KV
ESD: 8KV
Impedance: BNC: 75ohms, RJ45: 100ohms
Working Temperature: -10℃ to +70℃
Storage Temperature: -30℃ to +70℃
Humidity: 0-95%
External dimension: 105x58x29mm / 4.13'"x2.28"x1.14" (excluding connectors)
Weight: 180g

Type of the required wire:

Unshielded Cat-5 or above twisted pair wire(please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance.)
Characteristic impedance: 100Ω±20Ω
DC loop resistance: 18Ω/100m
Differential capacitance:62pf (Maximum)

Packaging & Shipping

Video Transmission 4CH CAT5 HD Passive UTP Video Balun BNC Female Transceiver RJ45 for CCTV System 2

Our Services

Video Transmission 4CH CAT5 HD Passive UTP Video Balun BNC Female Transceiver RJ45 for CCTV System 3

1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service

3,Reliable products quality and good reputation 4,High manufacturing capacity

5.OEM/ODM
