Product Details:
|

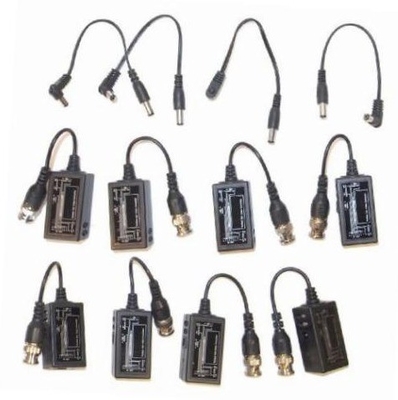

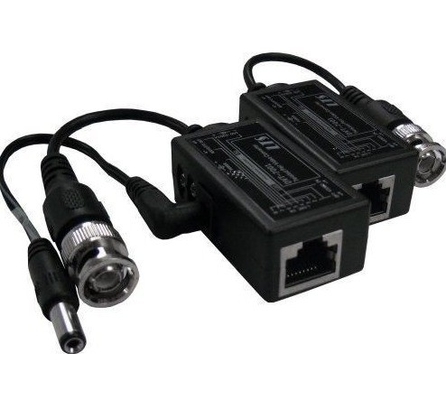

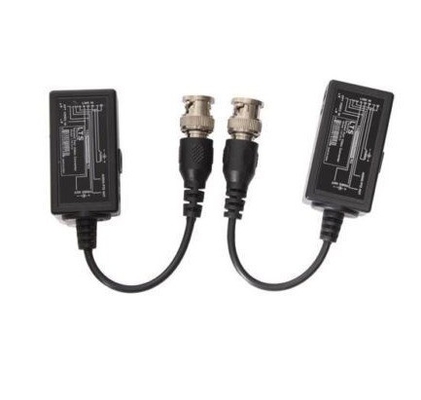

| Type: | Single Channel Passive | Product Name: | CCTV Camera Video Balun |
|---|---|---|---|
| Application: | CCTV System | Material: | ABS Plastic |
| Color: | Balck | Function: | Signal Transmission |
| Compatible Format: | HD CVI AHD TVI | Brand: | C-Power |
| Port: | Shenzhen |
Material :ABS Plastic
Frequency Response :DC to 8MHz
Attenuation :0.5dB typ
CMRR (Common Mode Rejection Ratio) :60dB
Impedance :
- BNC: 75 Ω
- RJ45: 100 Ω
Working Temperature : -10°C ~ 70°C
Storage Temperature : -30°C ~ 70°C
Humidity : 0 ~ 95%
Mechanical Dimension :
- approx. 52 (W) x 28(H) x 21 (D) mm
- approx. 2-1/8" (W) x 1-1/8"(H) x 7/8" (D) inch
