Product Details:
|
| Type: | Single Channel Passive | Product Name: | CCTV Camera Video Balun |
|---|---|---|---|
| Application: | CCTV System | Color: | Balck |
| Function: | Signal Transmission | Video Formats: | AHD HDTVI HDCVI |
| Brand: | C-Power | Port: | Shenzhen |

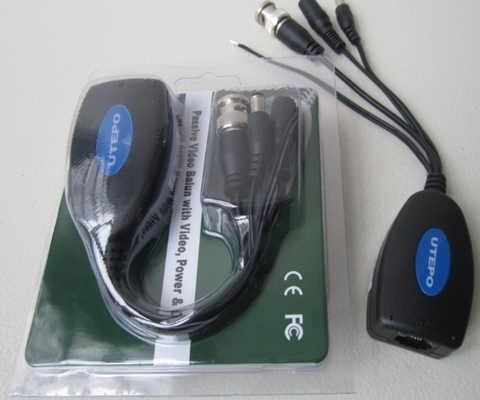

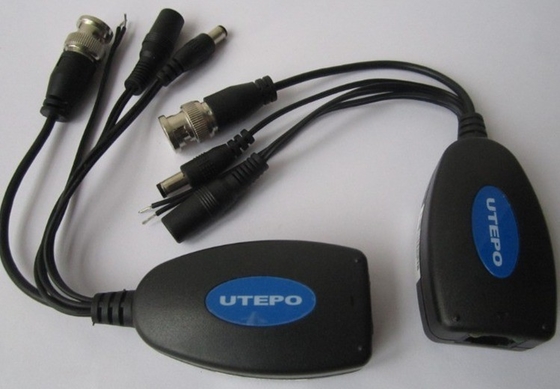

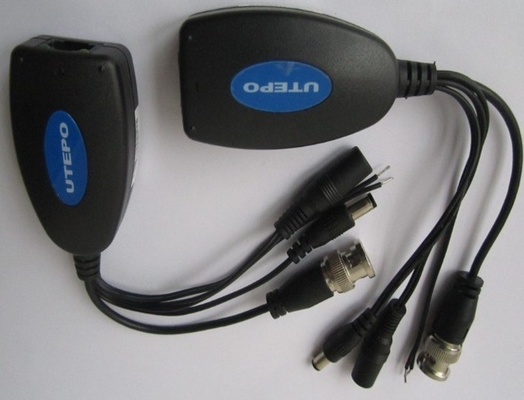

Passive Video Balun with Video, Power & Data, Model: VBU111RJ
Features:
*Transmit a color video signal up to 300M / 1000Ft,
and a full motion monochrome (B&W) video signal up to 500M / 1600Ft.
*Transmit power signal up to 200M / 600Ft. (Please
see Voltage Drop List).
*Transmit data signalup to 300M / 1000Ft.
BNC male with RJ45 Jack; male and female 12V DC plug on one device.
*Video, camera power, data (RS422, 485) transmission over one standard
CAT5 cable.
*Wave Filter Design, Anti-Static Design, Confirm to IEC 61000-4-2:1995
Standard
*Interference Rejection
*ABS Outer Shell
Video Input / Output | BNC |
Video Signal | 1V p-p, 75 Ohms |
Transmission Distance | Video: Color 300M / 1000Ft, B&W 500M |
| / 1600Ft |
| Power: 200M / 600Ft |
| Data: 300M / 1000Ft |
Cable | UTP/ Twisted Pair CAT5 |
| (24AWG) |
Data Wire | 2 Wire Bare Lead |
Lighting Protection | IKV (10/700us) |
Power | No Power Required |
Max Current | 1.5A |
