Product Details:
|
| Type: | Monitor, Single Channel Passive | Product Name: | CCTV Camera Video Balun |
|---|---|---|---|
| Application: | CCTV System | Material: | ABS Plastic |
| Color: | Balck | Function: | Signal Transmission |
| Compatible Format: | HD CVI AHD TVI | Port: | Shenzhen |

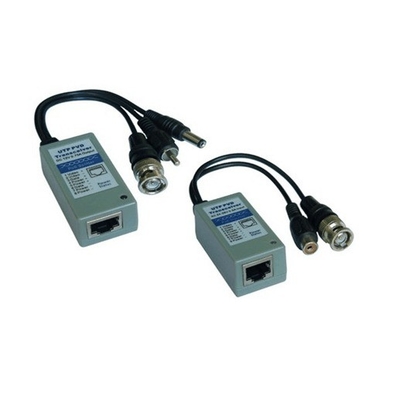

PoE UTP audio+video balun receiver which mainly used for security, education and other fields. It uses Cat5 or Cat5e as a transmission medium. It not only can real-time transmit color or black and white baseband video signal, but also can transmit single channel 12V PoE power and single channel audio signal. It can offer power for cameras. It will save wiring costs, simplify your wiring works.
Feature
Real-time transmission of High-Definition video signals.
Transmission distance up to 300m, transmission distance up to 900m if working with HXVB-300R.
NTSC, PAL, SECAM video formats
Offer power for cameras and get the audio,video signal in 1 utp cable.
super interference rejection, 3rd level lightningproof, built-in surge&transient protection
Specification
| Transmission distance | 300m |
| Signal Type | Video(PAL, NTSC, SECAM and other baseband video signal), audio, power |
| Power Supply | adaptive 30~38V AC or 24~28V DC/0.4A input, standard DC5.5 connector |
| Connector | Coaxial BNC(female), audio RCA, RJ45, DC 5.5 connector. |
| Surge Protection | 6000V 10uS*700uS IEC61000-4-5 |
| Frequency response | DC-6MHz |
| CMRR | 0 to 6MHz 60dB (typical) |
| Impedance | Coax (BNC female) 75 Ohm; UTP (unshielded twisted pair) 100 ohms |
| Cable Type | Cat5 or Cat5e unshielded twisted pair |
| Cable Impedance | 100 ± 20 ohms |
| Distributed capacitance | less than 62pF/m |
| DC loop resistance | 18 Ohm/100m |
| Operating temperature | -20oC~70oC |
| Relative Humidity | 0~95%(non-condensing) |
| Storage temperature | -40oC~150oC |
| Dimension | 54mm x 23mm x 28mm |
| Net Weight | 48g |
| Gross Weight | 106g(together with HXVB-200TA) |
