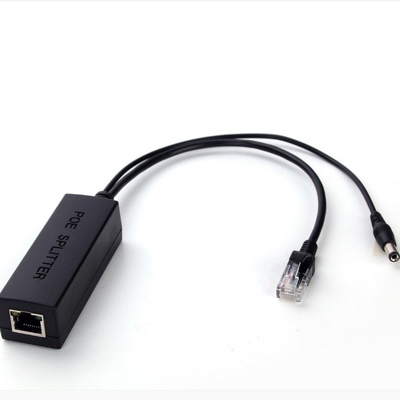

10/100Mbps Data Transfer Rate POE Splitter for IP Camera CCTV DC44-57V Power Input

 POE Splitter Cable Adapter IEEE802.3af 12VDC 1A For IP Cameras

Main Features:

• RJ45 female INPUT Port:
• Support the IEEE 802.3af the Power over Ethernet PoE Switch
• Support 48V Unsolicited Power Over Ethernet PoE Switch
• Support 48V Unsolicited Power Over Ethernet PoE Adapter
•
•

Specification:

• Compliant with IEEE802.3af 15.4W
• Power Input: DC44~57V
• Power Output: DC12V, max 1A

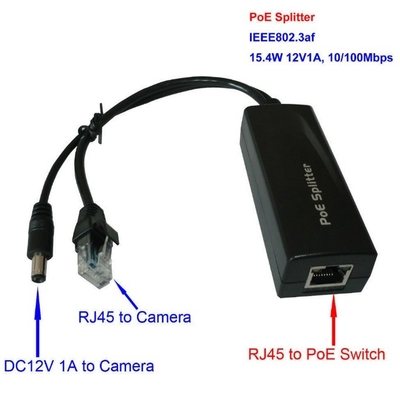

• Splits the 48V DC power over RJ-45 Ethernet cable into different DC output
• Data & Power INPUT Port: from RJ45 female
• Data Output Port: RJ45 Male
• Power Output Port: 5.5x2.1mm DC Power Plug
• Data Transfer Rate: 10/100Mbps
• Devices will be detected before poe input
• Power Pin: support both 1/2(+),3/6(-) or 4/5(+),7/8(-)
• Body size: 80 x 26x 26 mm
• DC cable length:210mm
• RJ45 Modular Plug cable length:210mm
