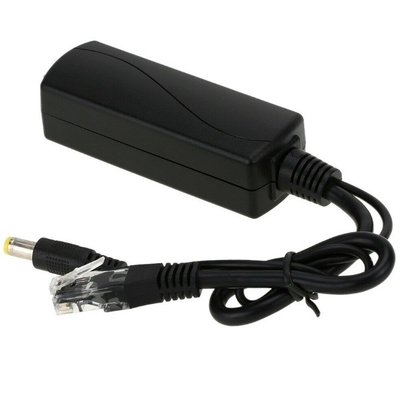

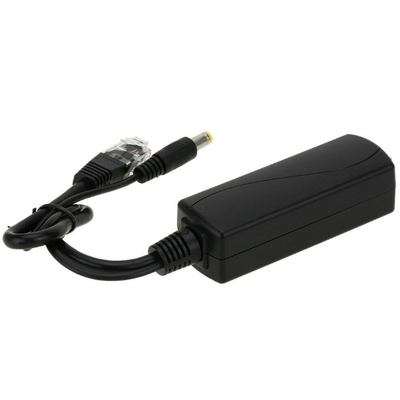

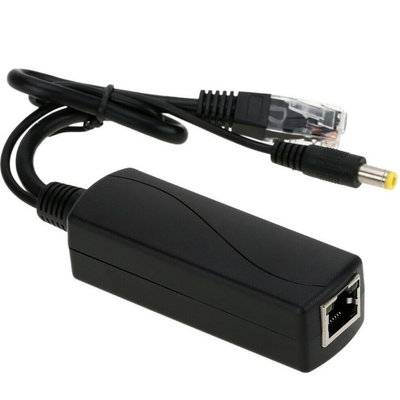

-Made 48v 10/100Mbps PoE Splitter Adapter Cable for Network Power Camera 12V 1.25A

10/100M PoE Splitter with IEEE 802.3af Standard & 12V 1A Output & DC48-57V Input (Power Over Ethernet, PoE Power Receiver) .

Features:

• Support the IEEE 802.3af the Power over Ethernet standard.
• Support 10/100Mbps data transmission.
• PoE Splitter receiving end supports variety of voltage of 44V-57V transfer.
• Provide 12V 1A power to adapt to a variety of small network equipment.
• Circuit isolation protection, effective protection of electrical equipment.
• High quality design guarantees the stability and reliability of the equipment in work.

Specification:



POE Parameters



1) Maximum Power: 15.4W (IEEE 802.3af)



2) Input voltage :40-57V



3) Output voltage: 12V



Connect Port



1) Input: an input RJ45 interface



2) Output: an output RJ45 connector and a DC output interface



3) Data transfer rate: 10/100Mbps



4) The maximum transmission distance: 100 meters



Network standards



IEEE802.3i 10 BASE-T,



IEEE802.3i 100 BASE-TX,



IEEE802.3x flow control



IEEE802.3af /IEEE802.3at
