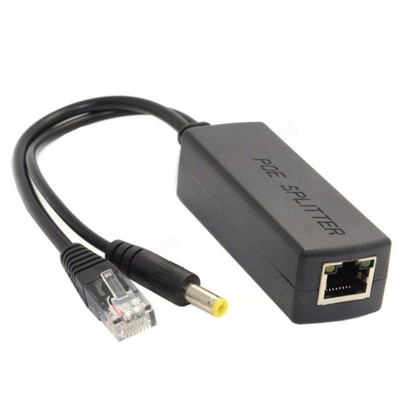

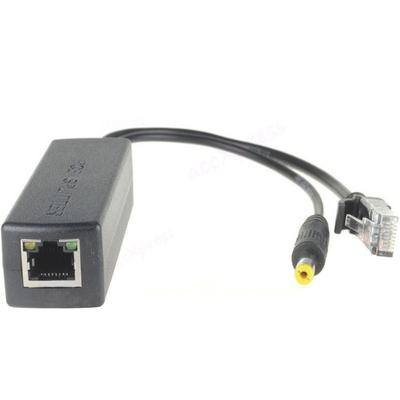

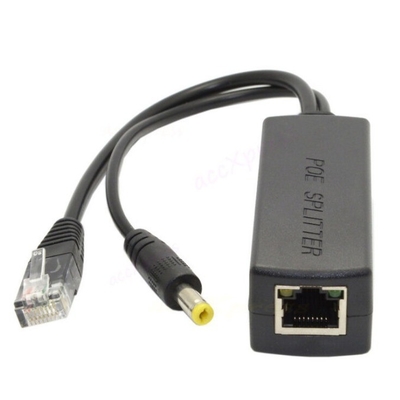

48V to 12V 5V 2.4A Active PoE Splitter for CCTV IP Camera IEEE802.3 Compliant in Black

 Description:
Single Port 100M PoE Splitter 15.4W PoE splitter, it is an economical and practical PoE remote power equipment base on IEEE802.3af/at standard. It can separate the power and data via cable transmission. Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af,Provides power and data at the same time for the terminal device does not support PoE.

Specifications:
Connector Type: 1x 10/100Mbps RJ45 port
Network Medium: Cat5 or above (UTP)
Network Protocol: IEEE 802.3 i 10 BASE-T,IEEE 802.3 u 100 BASE-TX,IEEE 802.3 x Flow Control,IEEE 802.3 af Power over Ethernet
PoE Port: 1 PoE Port
Power Input: 48-55V
Power Output: 12V
PoE Port Power: 15.4W
PoE Standard: IEEE 802.3 af
LED Display: PoE power input indicator light,DC output power indicator light
Product Size: 80x26x21mm, with 200mm Cable
Weight: 0.06KG
Working Environment: Operating Temperature: 0~55℃; Storage Temperature: -20~70℃; Operation Humidity: 90%, non-condensing;Storage Humidity: 95%, non-condensing
